KDI-1 錠劑及膠囊檢視機




KDI-1-Tablet & Capsule Inspection Machine.mp4

GENERAL:

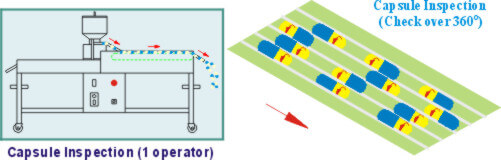

This inspection machine is designed and used for inspecting capsule or tablet which is spotty,broken,or not standard by vision through mechanically rotatingthe capsule over 360 degrees or turning the tablet from one surface to the other surface.


The inspector can easily take out any bad capsule or tablet and collect together.




FEATURES:


1.
All stainless shell, body hopper, and quide meeting G.M.P. requirements.

2.
Infinitely variable feeding Speed for different object.

3.
Conveying belt is special, durable & easy to clean.

4.
No noise, no public hazard.

5.
Simple operation, maintenance, and easy clearance.

6.
Stable convey result in less labor fatigue.

7.
Change quide from capsule to tablet within 10 minutes, vice versa.

APPLICABILITY:
  Applicable to all size of capsules, tablets, ball pills and all type of solid medication.



TECHNICAL DATA
CAPACITY CAPSULE Max. 50,000 Pcs/HR
CAPACITY TABLET Max. 70,000 Pcs/HR
OPERATOR CAPSULE
1 PERSON
OPERATOR TABLET
2 PERSON
POWER SUPPLY AC 110/220 50/60Hz
POWER CONSUMPTION
1/4 HP


PACKING DATA
MEASUREMENT 220 x 50 x 140 cm(LxWxH)
PACKING SIZE 230 x 65 x 135 cm(LxWxH)
NET WEIGHT:
150 kgs
GROSS WEIGHT:
220 kgs
