KDM-900 全自動折盒裝盒機

KDM-900-Automatic Cartoning Machine.mp4

FEATURES:

This machine is applicable to packing of cosmetics,drugs,foods.

This machine is easy for operation with its speed for stepless adjustment
and the adjustment is easy upon change of carton.

Single transmission with mechanical cam interaction is adopted thus
making the machine to attain to the performance of high precision, durability
and operation in high speed.

With diversified optional attachments, this machine can be used for packing
the products in sheet form, heat glue-melting machine and input and
stamping device of the instruction books to meet the packing requirement.

Safety devices:
if the instruction book is not input, defective products will be ejected.
if product is not loaded in, defective products will be ejected.
if carton is not input, products can not be loaded in.
if the guard cover is not closed, machine will be shutdown automatically.

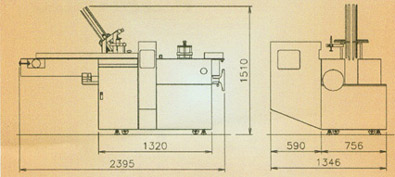

Power consumption: 2 HP M/C Weight:1100 KG Capacity: 120cycles/min

1.
Carton suction lever shall suck the carton to position.
2.
When the carton is moved from 3 to 4, the flap folding plate shall fold the small flap
into the instruction book sucking disk on the opposite side to suck the instruction
book downward and the clamping arm at the lower side shall ascend and pull the
instruction book clamp downward to position.
3.
The pushing lever shall push the product and instruction book into the carton and
detect at the same time whether or not product is available on the conveying belt.
4.
When the carton is moved from 5 to 6, the stamping wheel shall stamp the number
on the carton.
5.
After carton is positioned, the flap folding plate will fold small flap inward.
6.
The pressing lever will bend and fold the big flap to one degree.
7.
After the carton is positioned, the flap folding block will fold the front end of the big
flap into the carton.
8.
After the carton is positioned, flap pressing block 1 will flatten the big flap.
9.
After the carton is positioned, flap pressing block 2 will flatten the big flap.
10.
Conveying belt will deliver the cartons out continously.
11.
If no product is loaded in the carton, the cylinder will retract and let the carton fall down.
