KDY-FD  Fluid-bed Spray Granulator / Dryer



GENERAL:
For Dryer / Granulation in batch mode, the dry starting product is placed in the product container. Here it is mixed vigorously in the heated gas stream, held in suspension and agglomerated/granulated by spraying with a suitable bonding material. The product is then dried to the required end moisture content with high heat and material transition coefficients.
•
 Particularly fast drying even of temperature-sensitive products.
•
 Very effective type of solid drying.
•
 Outstanding heat transfer.
•
 Unmatched speed of drying.
•
 Gentle product handling.
•
 Intensive mixing of the solid material.
•
 Uniform, reproducible product quality.
•
 Homogeneous granules.
•
 Gentle product handling.
•
 Uniform spraying of all particles in the fluid bed.



ADVANTAGES:
•
 Mixing → Granulation → Drying Consistent operation.
•
 Grain size randomly adjustable subject to a wide variety of needs.
•
 Fast grain making without any damage to product effectiveness and flavor.
•
 Grains with perforated dispersion and high flow ability to make solution easy.
•
 Machine main body made of stainless steel , surface polished to make washing clean easy.
•
 Filter bags made of special conductive fiber effectively to eliminate statices and prevent spark discharge.
•
 Explosion relief hole to be mounted on top side of machine subject to the need of factory site.
• Filter bag timing shaking device to ensure effective drop of attachments from filter bags through shaking force.
• Fresh air filtered through high efficiency air filter.
• Spray gun easy for angle adjustment , randomly adjusting spraying pattern air volume , during operation.



FEATURES:

◎

Container
• Contact parts AISI 316 non contact parts AISI 304.
• Multi-pore bottom plate and stainless steel net.
• With 4 freely movable casters.
• 1 sight window for observation of work item flow.
• 1 sample taker to remote specimen for checking during operation without stopping the unit.
◎ Unit body
• Contact parts AISI 316 non contact parts AISI 304.
• 2 operation holes with sight window.
• 1 blast release vent.
• 1 silicone gasket.
• 1 container air-tight silicone lifter it is avoid use the cylinder makes in-convenience of cleaning.
◎ Filter bag
• Woven of specific cloths of conductive fibers with grounding to keep out static and spark discharge.
• Automatic shaking device.
• Filter bag with lifter.
• 1 silicone tire for air-tight filter bag.
  ◎ Air exhaustion
  • 1 set of exhaust fan.
  • 1 set of exhaustion damper of pneumatic operation to control air volume at no stage.
  ◎ Heating system
  • Regular steam heater of high efficiency and accurate temperature control.
◎ Automatic control
• 1 Ground type control box.
• Digital automatic temperature controller for accurate hot air temperature control.
• Automatic shaking of filter bag at pre-set timing.
• 1exhaust temperature controller.


APPLICATION:

• Pharmaceutical a. Western medicine: granulating, drying b. Chinese medicine: granulating of concentrated liquid, drying.
• Food Instant food: Health food, coffee, fruit favored milk powder, instant juice powder, seasoning, jelly powder, pudding powder, food additive.

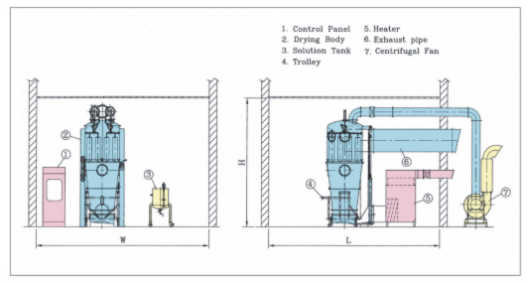

FLOWCHART:

TECHNICAL DATE:

Model KDY-FDG-2 KDY-FDG-8 KDY-FDG-60 KDY-FDG-120 KDY-FDG-200 KDY-FDG-400 KDY-FDG-600
Full Trolley Volume (L) 7 26 180 400 650 1300 2000
Working Batch (KG)
 Actual Weight Count
of Density: 0.3		 1-2 3-8 20-60 50-120 60-200 100-400 200-600
Room Dimension Size
(W x L x H) mm		 2500
 x
2500
 x
2100		 2500
 x
3000
 x
2300		 4000
 x
4000
 x
2800		 4000
 x
4000
 x
3200		 4500
 x
5000
 x
4500		 5000
 x
5000
 x
5000		 60000
 x
6000
 x
6000



FLOWCHART:



TECHNICAL DATE:

Model KDY-FD-
2GB		 KDY-FD-
8GB		 KDY-FD-
60GB		 KDY-FD-
120GB		 KDY-FD-
200GB		 KDY-FD-
400GB		 KDY-FD-
600GB
Full Trolley
Volume (L)		 7 26 180 400 650 1300 2000
Working Batch (KG)
 Actual Weight Count
of Density: 0.3		 1-2 3-8 20-60 50-120 60-200 100-400 200-600
Room Dimension
Size (W x L x H) mm		 2500
 x
2500
 x
2200		 2500
 x
3000
 x
2600		 4000
 x
4000
 x
3500		 4000
 x
4000
 x
4000		 4500
 x
5000
 x
5000		 5000
 x
5000
 x
6000		 60000
 x
6000
 x
7000
